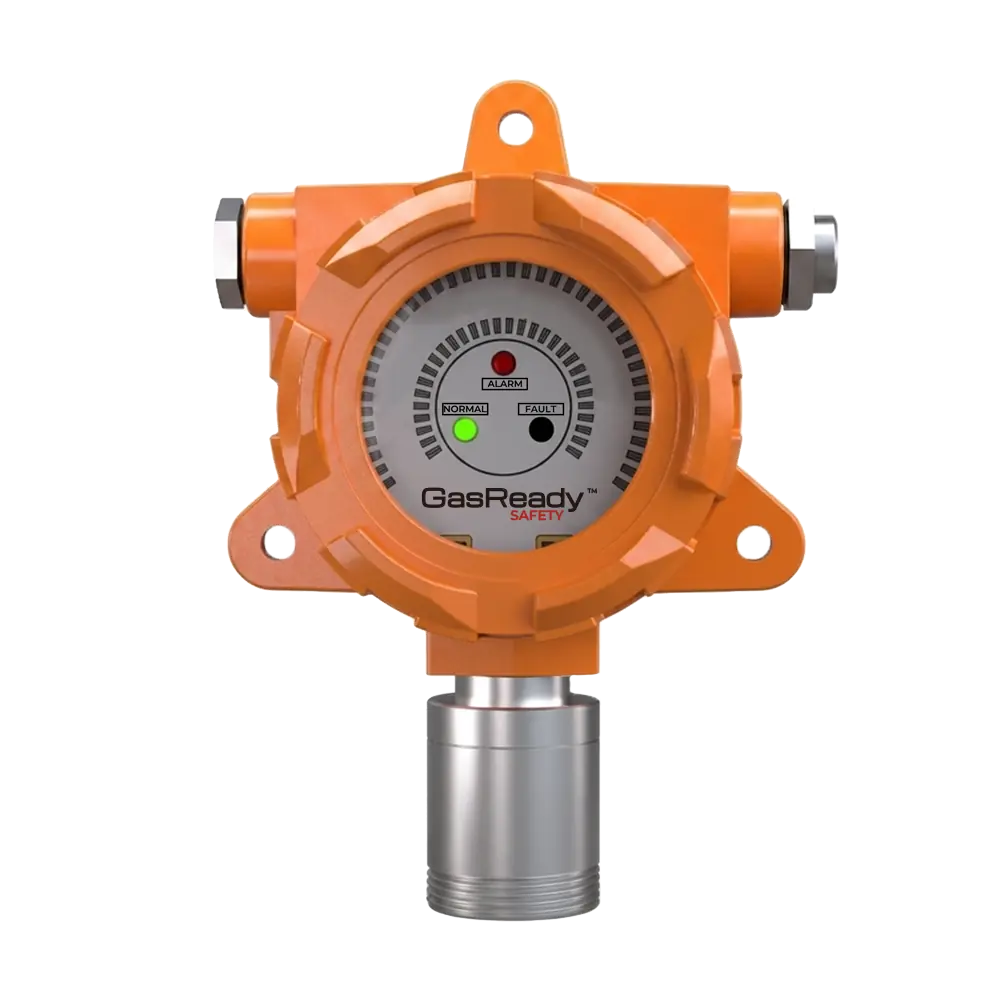

This F100N fixed gas detector without display features relay output and 4-20mA signals. Its experienced explosion-proof design provides seamless industrial automation and uncompromising facility protection in hazardous zones.

FEATURES

• Automated Control System: Equipped with dual relay switches and 4-20mA output to automatically trigger ventilation, strobe lights, or emergency shutdowns.

• Extreme Industrial Durability: Boasts an Ex db IIC T6 Gb explosion-proof rating and anti-corrosive housing, ensuring reliable operation against water, dust, and flames.

• Remote Management: Includes a convenient remote control function effective up to 8 meters, allowing for safe setting adjustments without direct contact in dangerous areas.

• Customizable High-Decibel Alerts: Features a large LED display and adjustable audio-visual alarms to ensure clear notification in high-noise industrial environments.

SPECIFICATIONS

Parameter	Specifications
Gas Detected	Ex or Toxic gases (see below common gas detected)
Response Time	T₉₀ ≤ 30s
Signal Output	Standard 4–20mA
Alarm Output	Passive switching (Relay); Capacity: AC 220V 3A
Alarm Indicators	Dual-level alarms (Level 1 & 2); High-intensity LED & Buzzer
Prompt Mode	LED status indicators
Work Environment	-10°C to 55°C; Humidity ≤95% RH (non-condensing)
Working Voltage	DC 24V ±15%
Wired Transmission	≤1000m via 3×1.5 or 4×2.5mm² shielded cable
Wireless Transmission	N/A
Explosion-Proof Mark	Ex db IIC T6 Gb
Protection Rating	IP66 Industrial Grade
Dimensions	200 × 139 × 92 mm
Weight	Approx. 1220g



 COMMON GAS DETECTED

Gas Detected	Standard Range	Optional Range	Accuracy	Resolution	Low Alarm	High Alarm
Oxygen (O₂)	0~30% VOL	0~30% VOL	≤±2% FS	0.1% VOL	19.5	23.5
Combustible	0~100% LEL	0~100% LEL	≤±5% FS	1% LEL	20	50
Methane (CH₄)	0~4% VOL	0~4% VOL	≤±5% FS	0.01% VOL	1.00	2.50
Carbon Monoxide (CO)	0~1000 PPM	0~2000/5000	≤±5% FS	1 PPM	50	200
Hydrogen Sulfide (H₂S)	0~100 PPM	0~50/200/1000	≤±5% FS	1/0.1 PPM	10	20
Ammonia (NH₃)	0~100 PPM	0~50/500/1000	≤±5% FS	1/0.1 PPM	20	50
Hydrogen (H₂)	0~1000 PPM	0~40000 PPM	≤±5% FS	1/0.1 PPM	200	500
Chlorine (CL₂)	0~20 PPM	0~100/150 PPM	≤±5% FS	1/0.1 PPM	5	10
Hydrogen Chloride(HCL)	0~20 PPM	0~20/150 PPM	≤±5% FS	1/0.1 PPM	5	10
Sulfur Dioxide (SO₂)	0~20 PPM	0~50/100 PPM	≤±5% FS	1/0.1 PPM	5	10
Nitric Oxide (NO)	0~250 PPM	0~500/1000 PPM	≤±5% FS	1/0.1 PPM	50	125
Nitrogen Dioxide (NO₂)	0~20 PPM	0~50 PPM	≤±5% FS	1/0.1 PPM	5	10
Carbon Dioxide (CO₂)	0~5000 PPM	0~5% /10% VOL	≤±5% FS	1PPM	1000	2000
Phosphine (PH₃)	0~20 PPM	0~20 PPM	≤±5% FS	1 PPM	5	10
Hydrogen Cyanide(HCN)	0~50 PPM	0~50 PPM	≤±5% FS	1 PPM	10	25
Ethylene Oxide (C₂H₄O)	0~100 PPM	0~100 PPM	≤±5% FS	1 PPM	20	50
Ozone (O₃)	0~100 PPM	0~20/100 PPM	≤±5% FS	0.1 PPM	20	50
Formaldehyde (CH₂O)	0~40 PPM	0~50/100 PPM	≤±5% FS	1/0.1 PPM	8	20
Benzene (C₆H₆)	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
Toluene (C₇H₈)	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
Xylene (C₈H₁₀)	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
VOC	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
Vinyl Chloride (C₂H₃CL)	0~250 PPM	0~250 PPM	≤±5% FS	1 PPM	50	125
Methanol (CH₃OH)	0~30 PPM	0~30 PPM	≤±5% FS	1 PPM	6	15
Isobutene (C₄H₈)	0~90 PPM	0~90 PPM	≤±5% FS	1 PPM	18	45
Ethanol (C₂H₆O)	0~80 PPM	0~80 PPM	≤±5% FS	1 PPM	16	40

Note:*We can detect up to 600 gases. Please contact us for more info if you cannot find the gas you need to detect above.

*The specific configurations and parameters are subject to the manufacturer’s technical documents.
