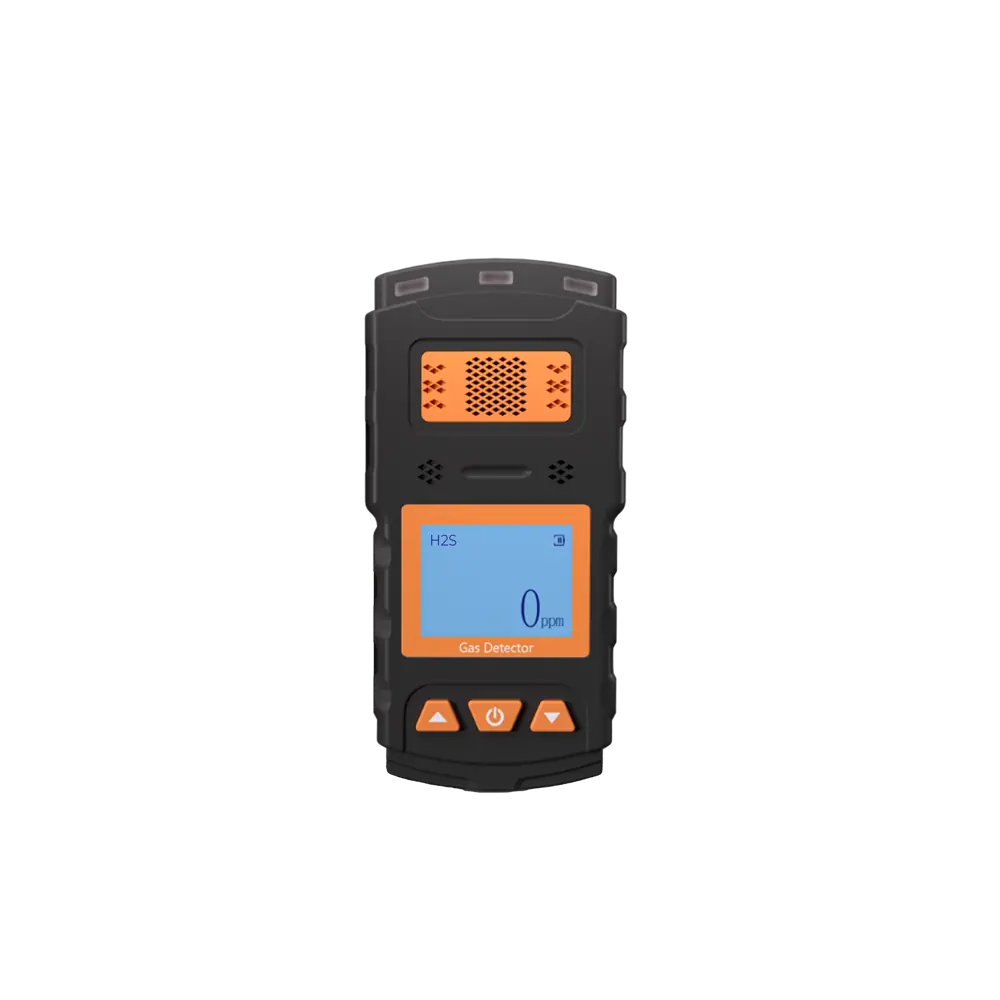

G1 Portable Single Gas Detector | GasReady

G1 Portable Single Gas Detector | GasReady

The G1 portable single gas detector is a serviceable gas detector that provides cost-effective, reliable monitoring with a 2-5 year lifespan. Its rugged design and precise detection across 20+ gases ensure unmatched worker safety and reliability across the harshest industrial and domestic environments.

FEATURES

• High-Precision Longevity: Utilizes premium sensors offering rapid response, low error rates, and an extended operational lifespan of 2 to 5 years.

• Triple-Alert Safety System: Features synchronized LED lights, high-decibel buzzers, and vibration to ensure immediate hazard awareness in noisy or dim conditions.

• Industrial-Grade Resilience: Constructed from high-strength ABS plastic with waterproof, dust-proof, and explosion-proof certifications for maximum durability in extreme settings.

• Versatile Portability: Designed with a convenient back clip for hands-free operation, making it ideal for diverse sectors from petroleum and refining to home safety.

SPECIFICATIONS

Parameter	Specifications
Gas Detected	Flammable or Toxic gases
Accuracy	≤±5% FS
Response Time	T₉₀ ≤ 30s
Display & Indication	LCD real-time data; LED, Buzzer, and Vibration alarms
Fault Notifications	System status, fault, and under-voltage alerts
Working Environment	-20°C to 50°C; ≤95% RH (non-condensing)
Power Supply	DC 3.7V (2000mAh high-capacity lithium battery)
Standby	≥8 Hours standby
Sensor Lifespan	2 Years
Explosion-Proof Grade	Ex ib IIC T4 Gb, Ex db ib IIC T4 Gb (with LEL sensor)
Dimensions	112 × 56 × 45 mm (including alligator clip)
Weight	Approx. 152g

COMMON GAS DETECTED

Gas Detected	Standard Range	Optional Range	Accuracy	Resolution	Low Alarm	High Alarm
Oxygen (O₂)	0~30% VOL	0~30% VOL	≤±2% FS	0.1% VOL	19.5	23.5
Combustible	0~100% LEL	0~100% LEL	≤±5% FS	1% LEL	20	50
Methane (CH₄)	0~4% VOL	0~4% VOL	≤±5% FS	0.01% VOL	1.00	2.50
Carbon Monoxide (CO)	0~1000 PPM	0~2000/5000	≤±5% FS	1 PPM	50	200
Hydrogen Sulfide (H₂S)	0~100 PPM	0~50/200/1000	≤±5% FS	1/0.1 PPM	10	20
Ammonia (NH₃)	0~100 PPM	0~50/500/1000	≤±5% FS	1/0.1 PPM	20	50
Hydrogen (H₂)	0~1000 PPM	0~40000 PPM	≤±5% FS	1/0.1 PPM	200	500
Chlorine (CL₂)	0~20 PPM	0~100/150 PPM	≤±5% FS	1/0.1 PPM	5	10
Hydrogen Chloride(HCL)	0~20 PPM	0~20/150 PPM	≤±5% FS	1/0.1 PPM	5	10
Sulfur Dioxide (SO₂)	0~20 PPM	0~50/100 PPM	≤±5% FS	1/0.1 PPM	5	10
Nitric Oxide (NO)	0~250 PPM	0~500/1000 PPM	≤±5% FS	1/0.1 PPM	50	125
Nitrogen Dioxide (NO₂)	0~20 PPM	0~50 PPM	≤±5% FS	1/0.1 PPM	5	10
Carbon Dioxide (CO₂)	0~5000 PPM	0~5% /10% VOL	≤±5% FS	1PPM	1000	2000
Phosphine (PH₃)	0~20 PPM	0~20 PPM	≤±5% FS	1 PPM	5	10
Hydrogen Cyanide(HCN)	0~50 PPM	0~50 PPM	≤±5% FS	1 PPM	10	25
Ethylene Oxide (C₂H₄O)	0~100 PPM	0~100 PPM	≤±5% FS	1 PPM	20	50
Ozone (O₃)	0~100 PPM	0~20/100 PPM	≤±5% FS	0.1 PPM	20	50
Formaldehyde (CH₂O)	0~40 PPM	0~50/100 PPM	≤±5% FS	1/0.1 PPM	8	20
Benzene (C₆H₆)	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
Toluene (C₇H₈)	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
Xylene (C₈H₁₀)	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
VOC	0~1000 PPM	0~1000 PPM	≤±5% FS	1 PPM	200	500
Vinyl Chloride (C₂H₃CL)	0~250 PPM	0~250 PPM	≤±5% FS	1 PPM	50	125
Methanol (CH₃OH)	0~30 PPM	0~30 PPM	≤±5% FS	1 PPM	6	15
Isobutene (C₄H₈)	0~90 PPM	0~90 PPM	≤±5% FS	1 PPM	18	45
Ethanol (C₂H₆O)	0~80 PPM	0~80 PPM	≤±5% FS	1 PPM	16	40

Note:

*We can detect up to 600 gases. Please contact us for more info if you cannot find the gas you need to detect above.
*The specific configurations and parameters are subject to the manufacturer’s technical documents.
